Washers

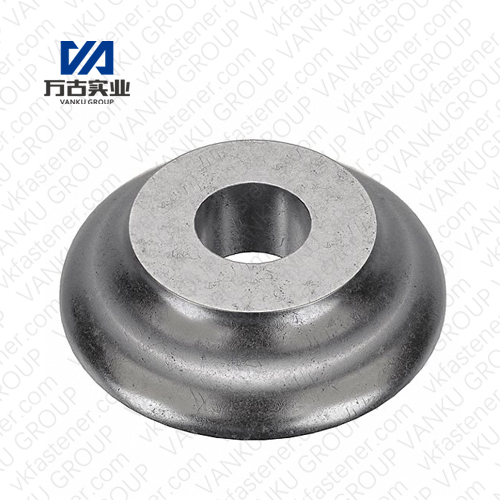

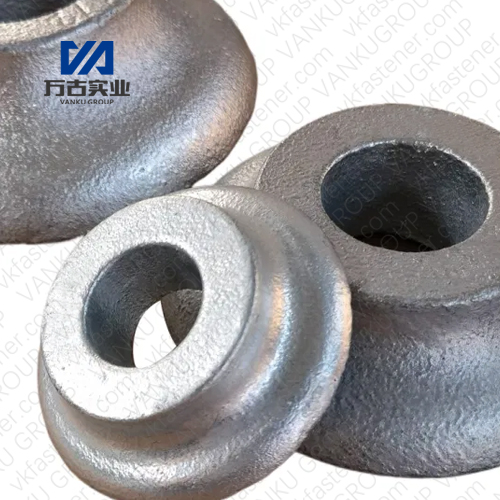

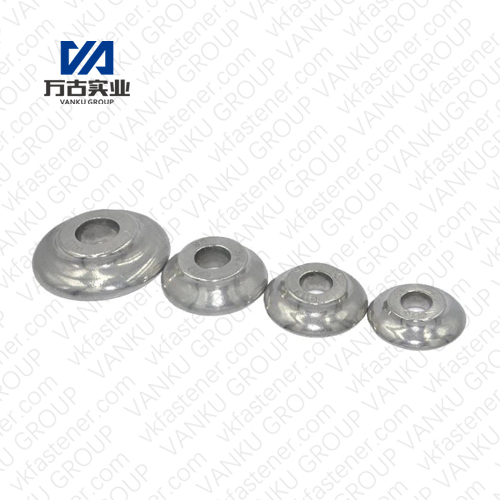

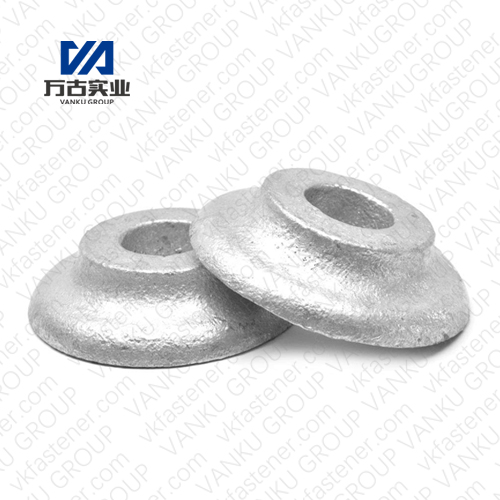

Ogee Washer

Main Features

  • Main Parameters
  • FAQ

<

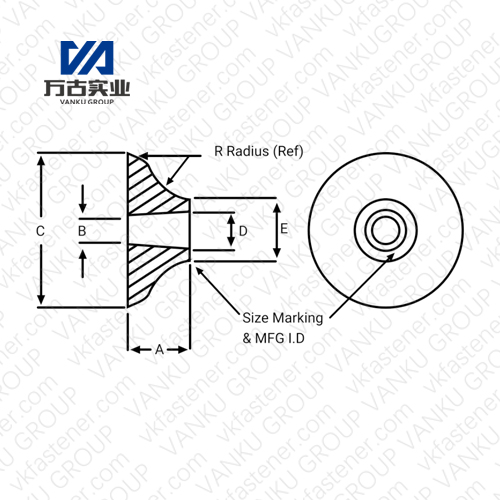

SizeNominalABottom DiameterTop DiameterR
BCDE
ThicknessInside
Diameter
Outside
Diameter
Inside
Diameter
Outside
Diameter
Radius
RefRef.Ref
1/20.5001/25/823/41 3/81/2
5/80.62527/4039/532 19/257/81 5/85/8
3/40.75037/508/92 43/5011 7/85/8
7/80.8757/813 1/211/823/4
11.00029/3211/841 1/42 1/41/2
11/81.1251 1/811/44 1/41 3/82 1/21
11/41.2501 1/413/84 1/21 1/22 1/21
